RM 300i工業流變儀

剪切速率工業流變儀，單獨的不銹鋼測量頭，鋼和機架19英寸的電子盒。可以和RT-300 爐或CP100使用，適合在非常的高溫度測試，適合熔融玻璃流變數據測定。

RM300I規格

測量原理旋轉剪切速率施加流變儀

旋轉速度0.1〜1500轉

扭矩范圍0.05至50 MNM

溫度-20〜300℃

（應用功能）

精度+/-1％滿量程

重復精度+/ - 0.2％

數字顯示T°C - 剪切速率 - 轉矩 - 粘度 -

MS - YV - 時間

粘度范圍為1250000 000毫帕

電源電壓90-240 VAC，50/60赫茲

PC聯接RS232串口

其他細節從一臺計算機驅動

由-P Rheomatic軟件。

許多測量配件

或恒溫。

外形尺寸（寬x長x高），重量電子箱：

483×292 x 133毫米

主管：∅70毫米X H180毫米

3千克

應用：

食品行業/化工行業/熔融玻璃/涂料/墨水/建設行業

==============================================================

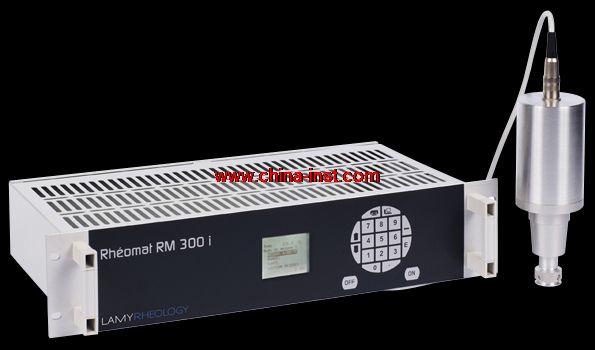

RM 300i industrial rheometer

Shear rate imposed industrial rheometer

with separate measuring head in stainless

steel and rack 19 inch electronic box. Ideal

for measurment at very high temperature

like melt glass.

RM 300i SPECIFICATIONS

Measuring principle Rotating shear rate imposed rheometer

Rotation speeds 0.1 to 1500 rpm

Torque range 0.05 to 50 mNm

Temperature -20 to 300 °C

(in function of application)

Accuracy +/-1% of the full scale

Repeatability +/- 0.2%

Digital display T°C - Shear rate - Torque - Viscosity -

MS - YV - Time

Viscosity range 1 to 250 000 000 mPa.s

Supply voltage 90-240 VAC 50/60 Hz

PC connexion RS232 serial port

Other detail Drived from a computer

by Rheomatic-P software.

Many accessories for measurement

or thermostating.

Dimensions (WxLxH) and weight Electronic box:

483 x 292 x 133 mm

Head: ∅70 mm x h 180 mm

3 kg

APPLI CATIONS

Food industry Chemical industry Melt glass

Paint/Ink Building industry

AVAIL ABLE ACCESSORI ES

Paddle system.

MS-DIN RM 300 measuring system.

Measuring system for Plastisols.

RT-300 oven.

CP100 Peltier cone-plate stand.

ST-100 Peltier.

Rheomatic-P software.
